Sumida America Components Inc.
FIXED IND 1MH 220MA 1.84 OHM TH

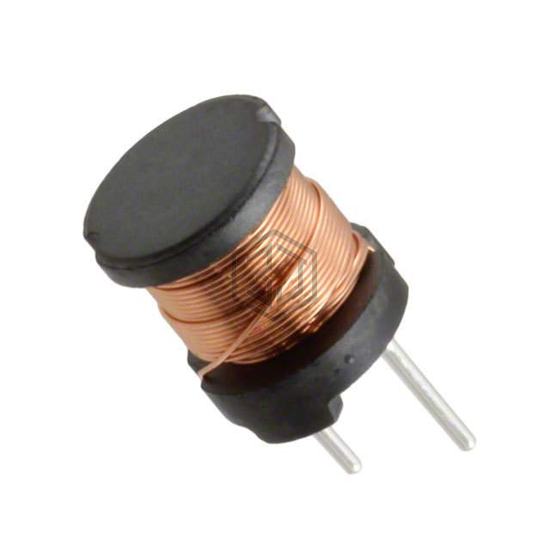

RCH895NP-102K is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1MH 220MA 1.84 OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 220 mA.
In Stock: 2,501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.84Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
