Sumida America Components Inc.
FIXED IND 68UH 1.9A 138 MOHM TH

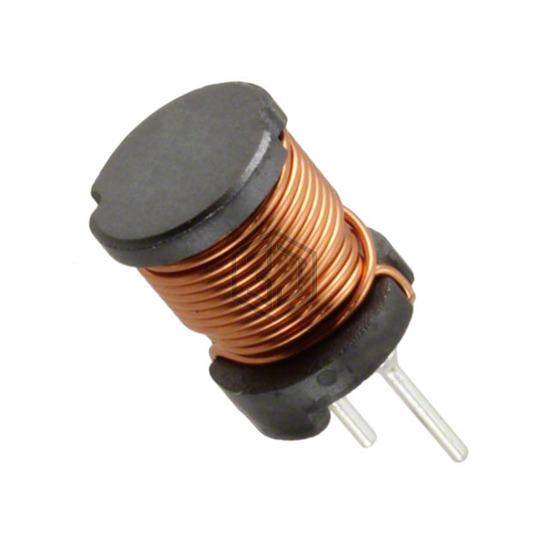

RCH8011NP-680L is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 68UH 1.9A 138 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 1.9 A.
In Stock: 2,135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 1.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 138mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
Submit your RFQ for RCH8011NP-680L and get a quote within 24 hours.
