Sumida America Components Inc.
FIXED IND 330UH 930MA 520MOHM TH

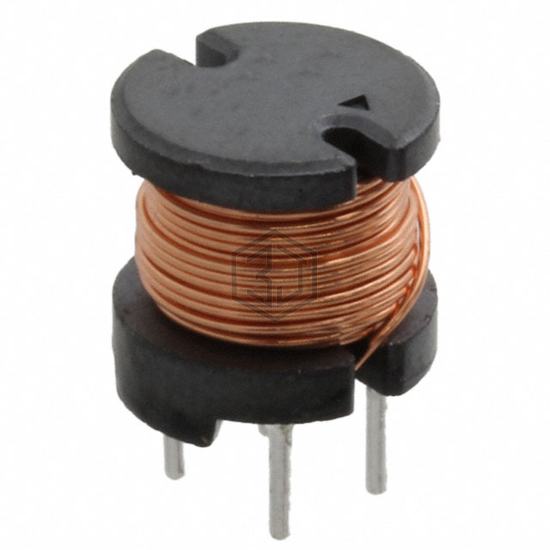

RCH110NP-331K is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 330UH 930MA 520MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case Radial, Vertical Cylinder, 4 Leads (Open), current rating (amps) 930 mA.
In Stock: 1,883
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 930 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 520mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
Submit your RFQ for RCH110NP-331K and get a quote within 24 hours.
