Sumida America Components Inc.
FIXED IND 33UH 10A 10.7 MOHM TH

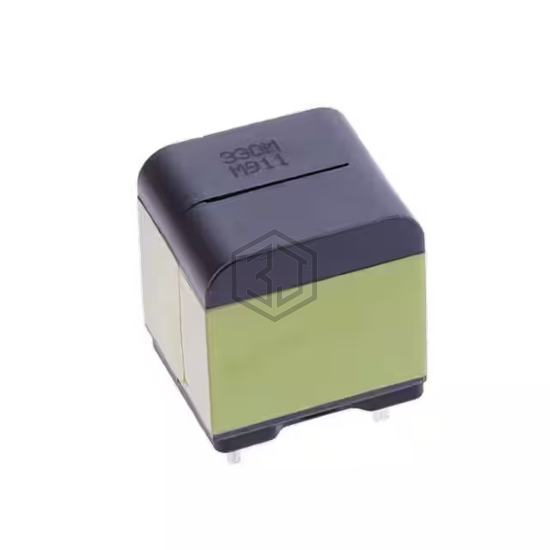

DEP1519BHF-330M is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 33UH 10A 10.7 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical, 4 Leads, current rating (amps) 10 A.
In Stock: 193
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 9.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.689" L x 0.591" W (17.50mm x 15.00mm) |
| Height - Seated (Max) | 0.760" (19.30mm) |
