Sumida America Components Inc.
FIXED IND 33UH 880MA 230MOHM SMD

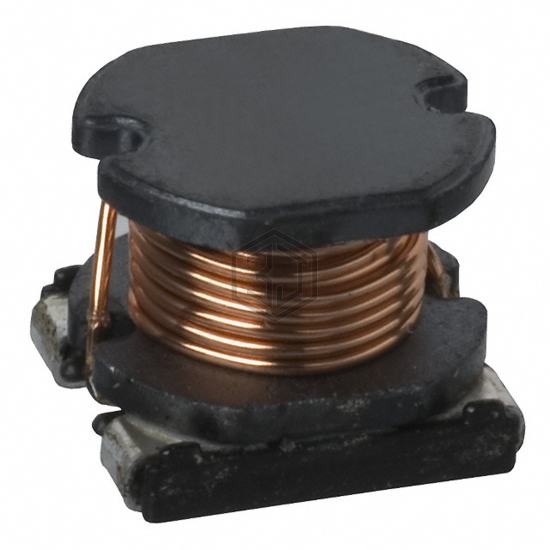

CR54NP-330LC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 33UH 880MA 230MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 880 mA.
In Stock: 1,499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 880 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16.3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.209" W (5.80mm x 5.30mm) |
| Height - Seated (Max) | 0.191" (4.85mm) |
Submit your RFQ for CR54NP-330LC and get a quote within 24 hours.
