Sumida America Components Inc.
FIXED IND 3.9UH 1.33A 93.7 MOHM

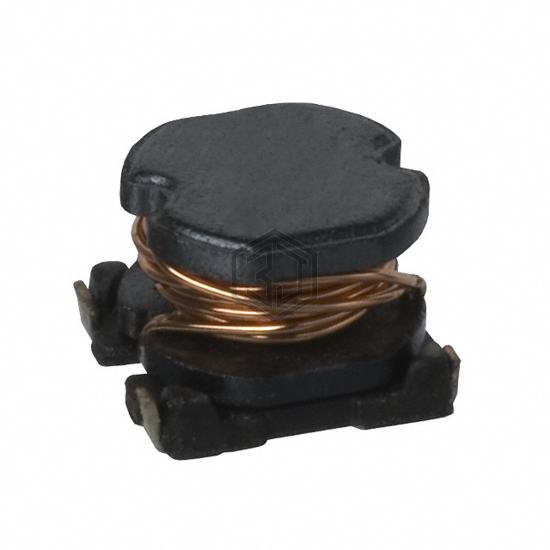

CR43NP-3R9MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 3.9UH 1.33A 93.7 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 1.33 A.
In Stock: 1,100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.9 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.33 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 93.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 52.6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.169" W (4.80mm x 4.30mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for CR43NP-3R9MC and get a quote within 24 hours.
