Sumida America Components Inc.
CMC 2.5A 2LN 600 OHM SMD

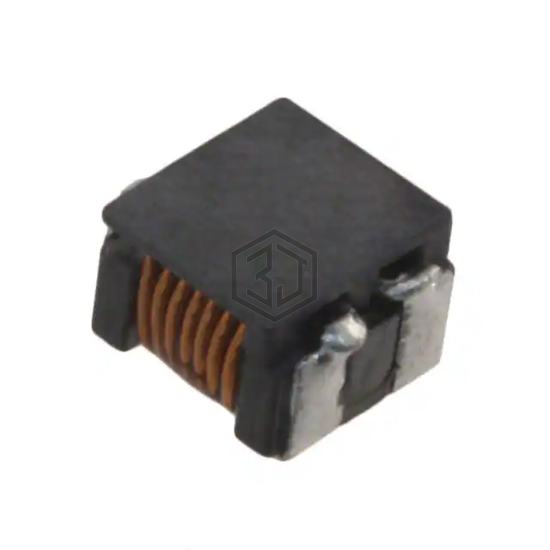

CPFC6D36NP-100M06 is a Common Mode Chokes manufactured by Sumida America Components Inc.. CMC 2.5A 2LN 600 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 100°C, package / case Horizontal, 4 J-Lead, size / dimension 0.244" L x 0.209" W (6.20mm x 5.30mm).
In Stock: 11,229
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 2.5A |
| DC Resistance (DCR) (Max) | 20mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -20°C ~ 100°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.244" L x 0.209" W (6.20mm x 5.30mm) |
| Height (Max) | 0.150" (3.80mm) |
| Package / Case | Horizontal, 4 J-Lead |
Submit your RFQ for CPFC6D36NP-100M06 and get a quote within 24 hours.
