Sumida America Components Inc.
FIXED IND 6.8UH 650MA 276MOHM SM

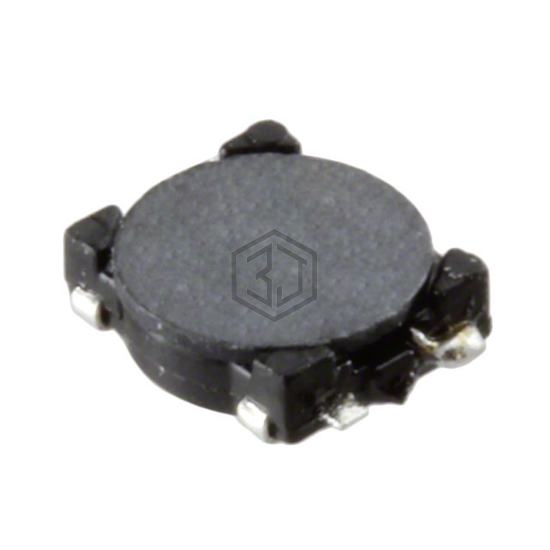

CMD4D13NP-6R8MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 6.8UH 650MA 276MOHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 650 mA, size / dimension 0.169" L x 0.161" W (4.30mm x 4.10mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 810mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 276mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
Submit your RFQ for CMD4D13NP-6R8MC and get a quote within 24 hours.
