Sumida America Components Inc.

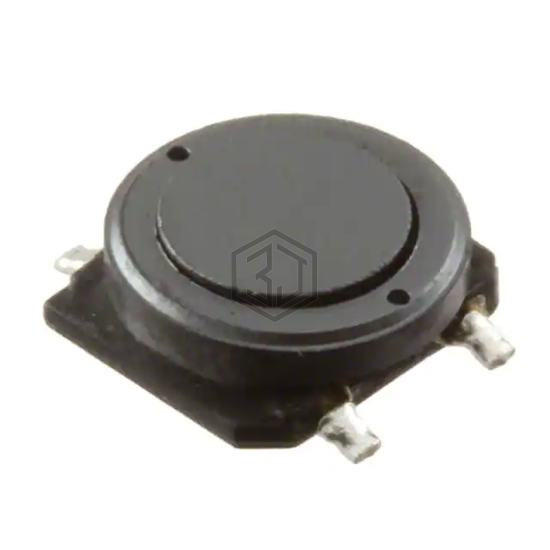

FIXED IND 12UH 616MA 220MOHM SMD
CLS62NP-120NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 12UH 616MA 220MOHM SMD. Key specifications: mounting type Surface Mount, package / case 4-SMD, current rating (amps) 616 mA, size / dimension 0.268" L x 0.260" W (6.80mm x 6.60mm).
In Stock: 916
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 12 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 616 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.260" W (6.80mm x 6.60mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CLS62NP-120NC and get a quote within 24 hours.
