Sumida America Components Inc.
FIXED IND 100UH 830MA 315MOHM SM

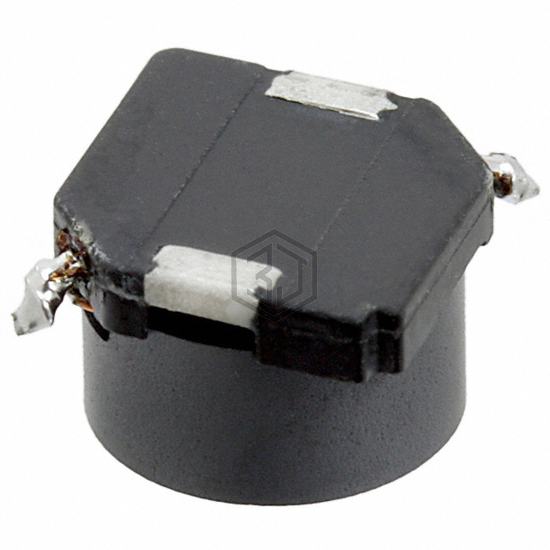

CDRR75NP-101MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 100UH 830MA 315MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 830 mA.
In Stock: 6,122
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 830 mA |
| Current - Saturation (Isat) | 440mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 315mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.272" L x 0.272" W (6.90mm x 6.90mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for CDRR75NP-101MC and get a quote within 24 hours.
