Sumida America Components Inc.
FIXED IND 4.7UH 3.9A 27 MOHM SMD

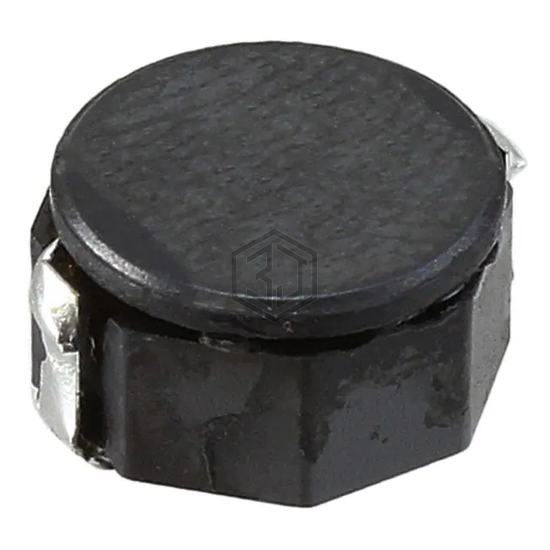

CDRH8D43HPNP-4R7NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 4.7UH 3.9A 27 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 3.9 A.
In Stock: 4,360
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.9 A |
| Current - Saturation (Isat) | 6.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for CDRH8D43HPNP-4R7NC and get a quote within 24 hours.
