Sumida America Components Inc.

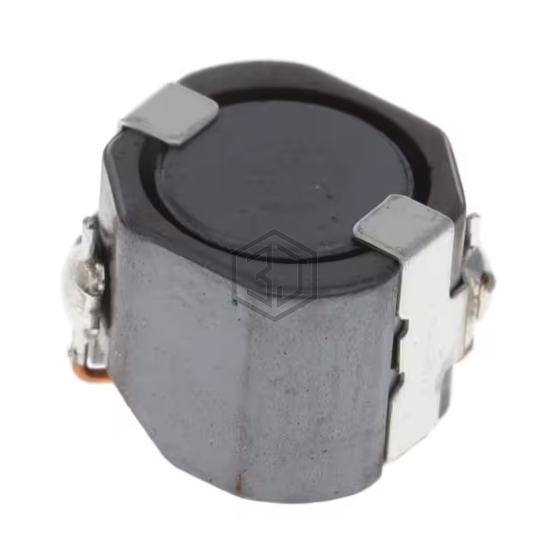

FIXED IND 22UH 2.83A 49MOHM SMD
CDRH80D65BT150NP-220MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 22UH 2.83A 49MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 2.83 A.
In Stock: 125
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.83 A |
| Current - Saturation (Isat) | 2.94A |
| Shielding | Shielded |
| DC Resistance (DCR) | 49mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Height - Seated (Max) | 0.268" (6.80mm) |
Submit your RFQ for CDRH80D65BT150NP-220MC and get a quote within 24 hours.
