Sumida America Components Inc.

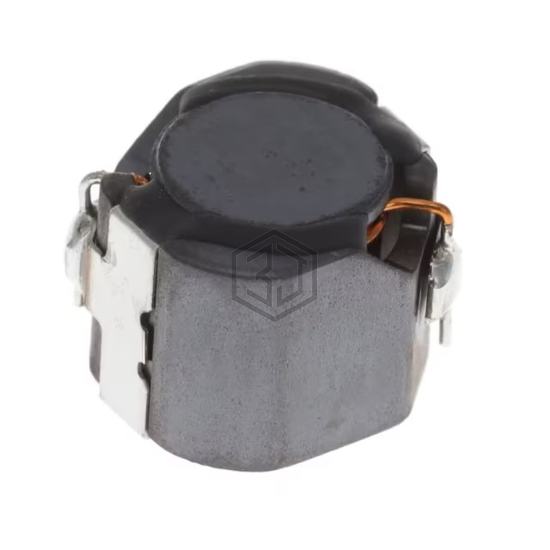

FIXED IND 100UH 1.37A 168MOHM SM
CDRH80D65BT150NP-101MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 100UH 1.37A 168MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.37 A.
In Stock: 118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.37 A |
| Current - Saturation (Isat) | 1.41A |
| Shielding | Shielded |
| DC Resistance (DCR) | 168mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.339" L x 0.323" W (8.60mm x 8.20mm) |
| Height - Seated (Max) | 0.268" (6.80mm) |
Submit your RFQ for CDRH80D65BT150NP-101MC and get a quote within 24 hours.
