Sumida America Components Inc.
FIXED IND 3.3UH 2.3A 20.3MOHM SM

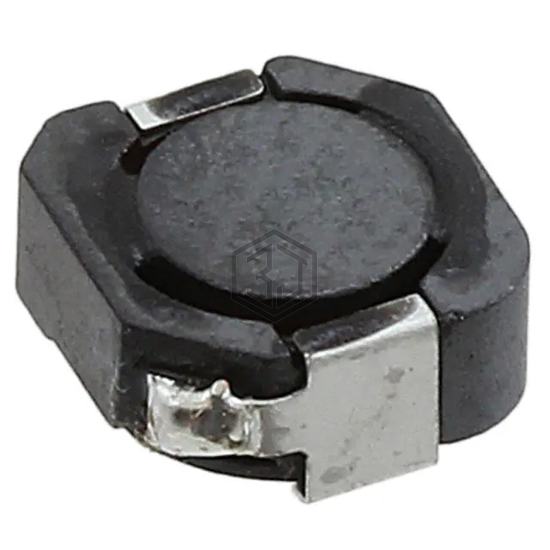

CDRH5D28RNP-3R3NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 3.3UH 2.3A 20.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 2.3 A.
In Stock: 6,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 20.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.232" W (6.00mm x 5.90mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDRH5D28RNP-3R3NC and get a quote within 24 hours.
