Sumida America Components Inc.
FIXED IND 22UH 900MA 266MOHM SMD

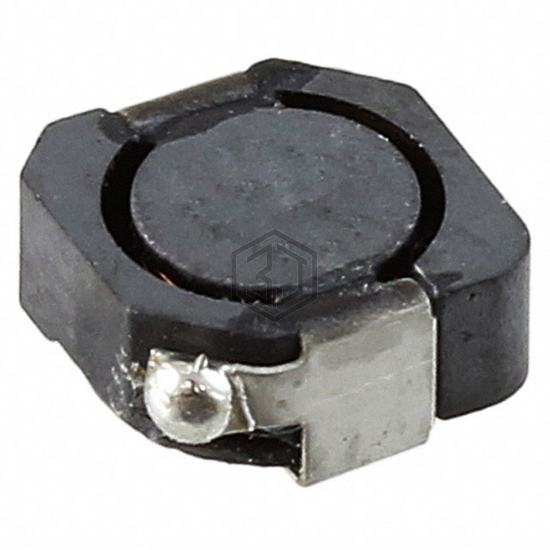

CDRH5D28RH125NP-220MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 22UH 900MA 266MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 1.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 266mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.232" W (6.00mm x 5.90mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDRH5D28RH125NP-220MC and get a quote within 24 hours.
