Sumida America Components Inc.

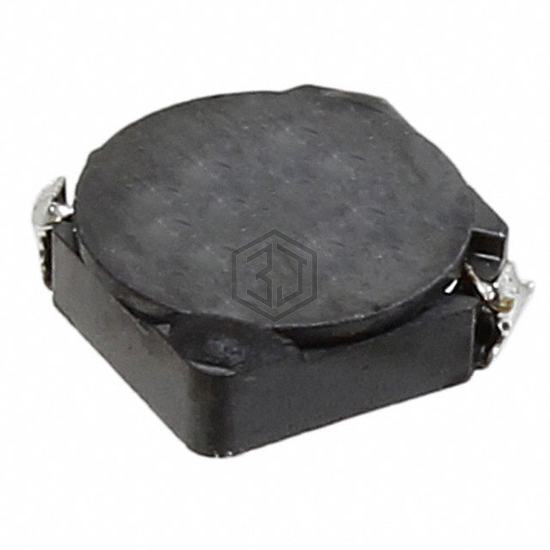

FIXED IND 22UH 800MA 320MOHM SMD
CDRH5D16NP-220MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 22UH 800MA 320MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 1,937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 950mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 320mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.220" W (5.60mm x 5.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
