Sumida America Components Inc.

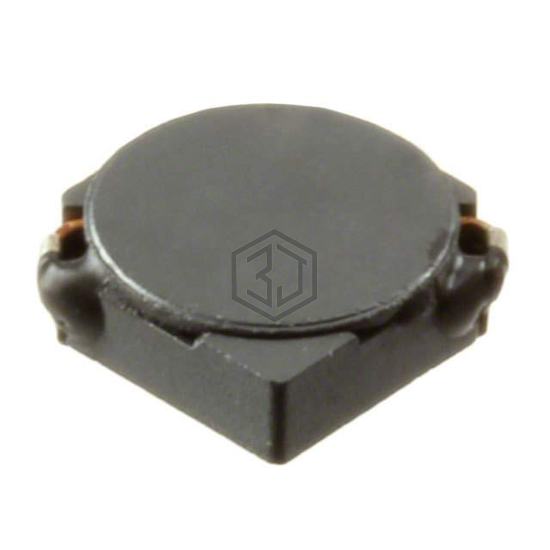

FIXED IND 2.2UH 3.8A 27 MOHM SMD
CDRH5D16F/LDNP-2R2NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 2.2UH 3.8A 27 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 3.8 A.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for CDRH5D16F/LDNP-2R2NC and get a quote within 24 hours.
