Sumida America Components Inc.

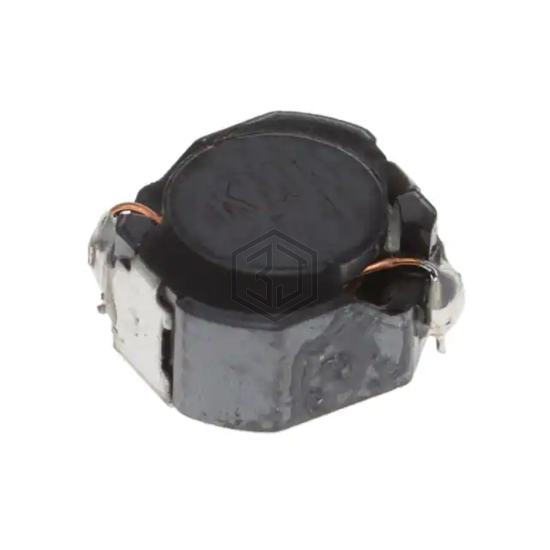

FIXED IND 33UH 900MA 280MOHM SMD
CDRH50D28BT150NP-330MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 33UH 900MA 280MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 1,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 930mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 280mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDRH50D28BT150NP-330MC and get a quote within 24 hours.
