Sumida America Components Inc.

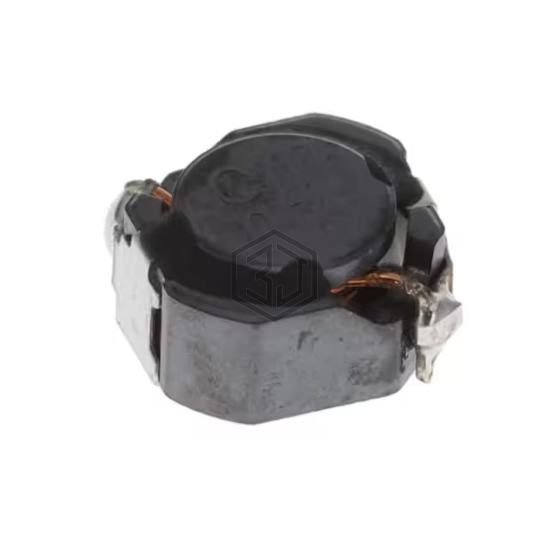

FIXED IND 2.2UH 3.2A 26MOHM SMD
CDRH50D28BT150NP-2R2NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 2.2UH 3.2A 26MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 1,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 26mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDRH50D28BT150NP-2R2NC and get a quote within 24 hours.
