Sumida America Components Inc.
FIXED IND 2.2UH 1.8A 38.3MOHM SM

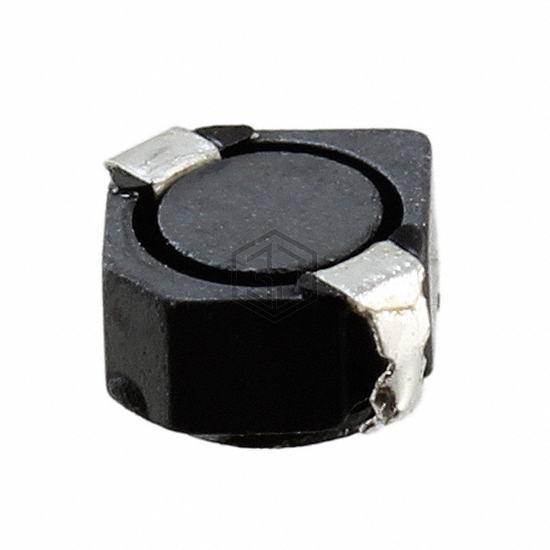

CDRH3D23NP-2R2PC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 2.2UH 1.8A 38.3MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.8 A.
In Stock: 9,774
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 38.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CDRH3D23NP-2R2PC and get a quote within 24 hours.
