Sumida America Components Inc.

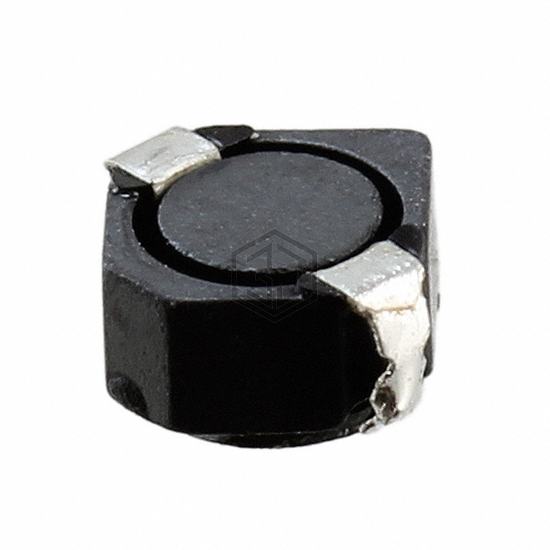

FIXED IND 1UH 3.1A 25 MOHM SMD
CDRH3D23NP-1R0PC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1UH 3.1A 25 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 3.1 A.
In Stock: 37,805
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 3.1 A |
| Current - Saturation (Isat) | 2.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CDRH3D23NP-1R0PC and get a quote within 24 hours.
