Sumida America Components Inc.
FIXED IND 4.7UH 7.8A 13MOHM SMD

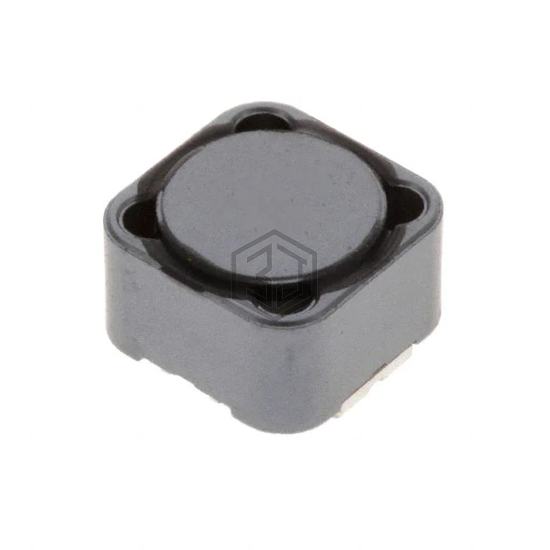

CDRH127L125NP-4R7NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 4.7UH 7.8A 13MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, Corner Terminals, current rating (amps) 7.8 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 7.8 A |
| Current - Saturation (Isat) | 12.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for CDRH127L125NP-4R7NC and get a quote within 24 hours.
