Sumida America Components Inc.
FIXED IND 3.9UH 6.8A 15MOHM SMD

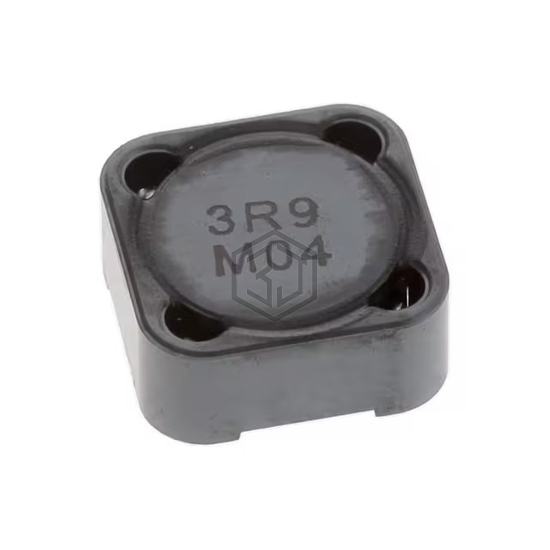

CDRH125L125NP-3R9NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 3.9UH 6.8A 15MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.8 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 3.9 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.8 A |
| Current - Saturation (Isat) | 8.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for CDRH125L125NP-3R9NC and get a quote within 24 hours.
