Sumida America Components Inc.
FIXED IND 10UH 4.6A 29 MOHM SMD

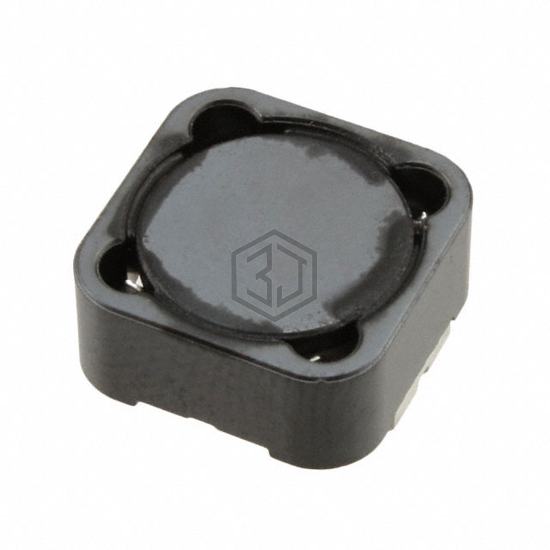

CDRH125/LDNP-100NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 10UH 4.6A 29 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 4.6 A, size / dimension 0.472" L x 0.472" W (12.00mm x 12.00mm).
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for CDRH125/LDNP-100NC and get a quote within 24 hours.
