Sumida America Components Inc.

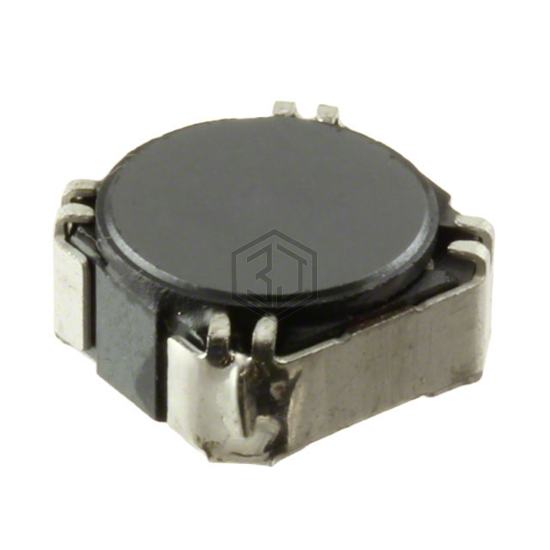

FIXED IND 7.2UH 2.9A 29 MOHM SMD
CDRH10D48/ANP-7R2MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 7.2UH 2.9A 29 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.9 A.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 7.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.9 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.406" L x 0.394" W (10.30mm x 10.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for CDRH10D48/ANP-7R2MC and get a quote within 24 hours.
