Sumida America Components Inc.
FIXED IND 82UH 1.3A 283 MOHM SMD

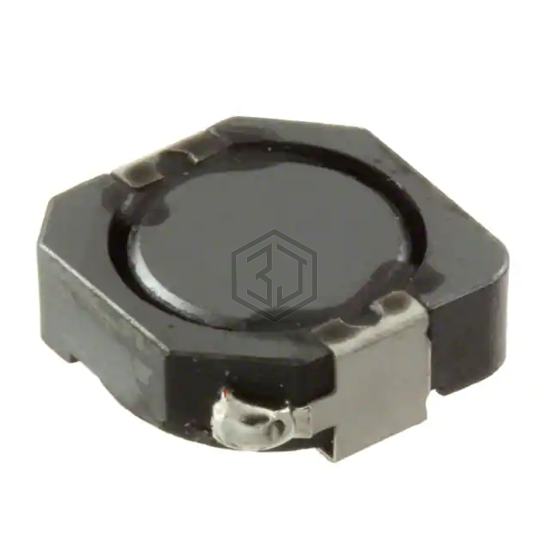

CDRH104RNP-820NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 82UH 1.3A 283 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 1.3 A.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 283mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for CDRH104RNP-820NC and get a quote within 24 hours.
