Sumida America Components Inc.

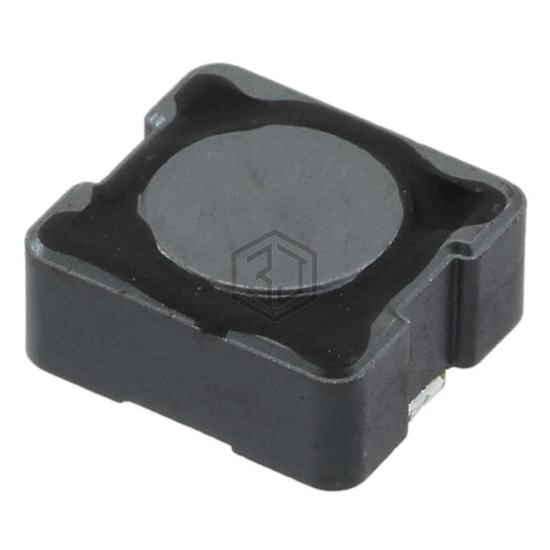

FIXED IND 3.8UH 5.5A 13 MOHM SMD
CDRH104RNP-3R8NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 3.8UH 5.5A 13 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 5.5 A.
In Stock: 26,870
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 3.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for CDRH104RNP-3R8NC and get a quote within 24 hours.
