Sumida America Components Inc.
FIXED IND 150UH 520MA 950MOHM SM

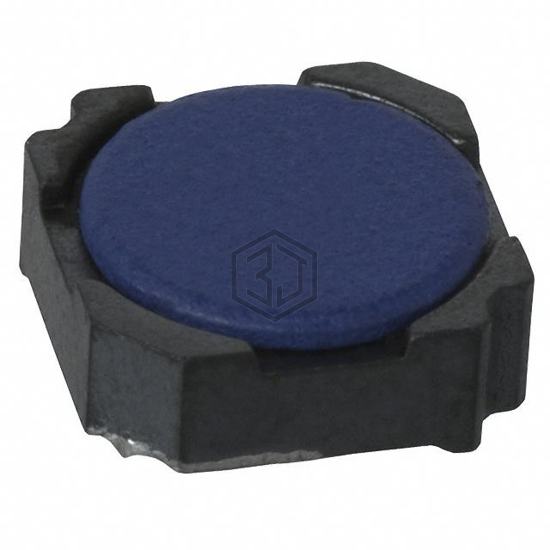

CDR7D28MNNP-151NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 150UH 520MA 950MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 520 mA.
In Stock: 129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 950mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDR7D28MNNP-151NC and get a quote within 24 hours.
