Sumida America Components Inc.

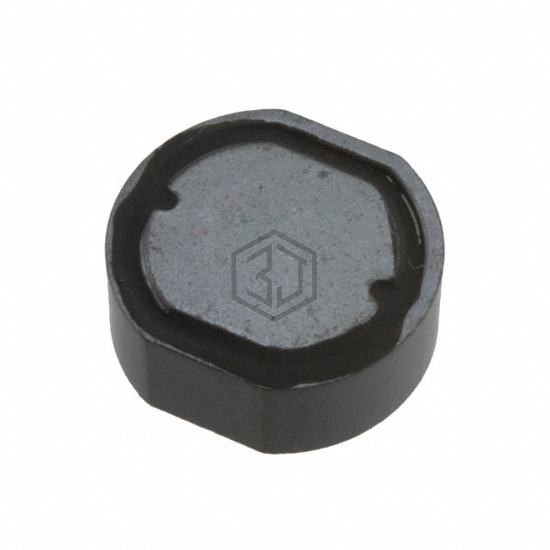

FIXED IND 68UH 1.26A 170MOHM SMD
CDR125NP-680MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 68UH 1.26A 170MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case Nonstandard, current rating (amps) 1.26 A.
In Stock: 7,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 68 µH |
| Tolerance | -15%, +20% |
| Current Rating (Amps) | 1.26 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) |
| Height - Seated (Max) | 0.232" (5.90mm) |
Submit your RFQ for CDR125NP-680MC and get a quote within 24 hours.
