Sumida America Components Inc.
FIXED IND 22UH 1.44A 135MOHM SMD

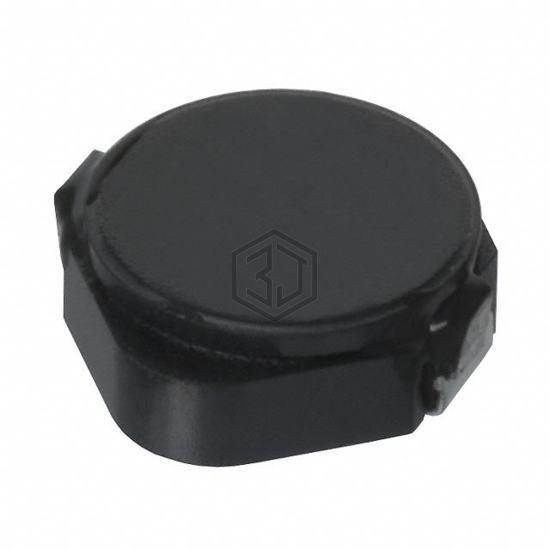

CDPH4D19FNP-220MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 22UH 1.44A 135MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.44 A.
In Stock: 86,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.44 A |
| Current - Saturation (Isat) | 540mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 135mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for CDPH4D19FNP-220MC and get a quote within 24 hours.
