Sumida America Components Inc.

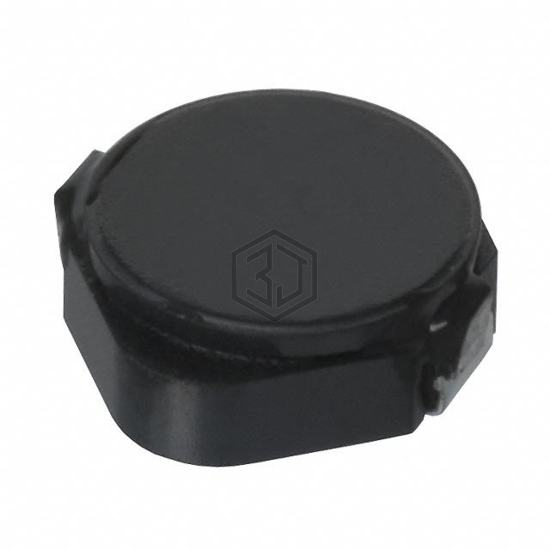

FIXED IND 15UH 1.88A 95 MOHM SMD
CDPH4D19FNP-150MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 15UH 1.88A 95 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 1.88 A.
In Stock: 48,172
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.88 A |
| Current - Saturation (Isat) | 660mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for CDPH4D19FNP-150MC and get a quote within 24 hours.
