Sumida America Components Inc.

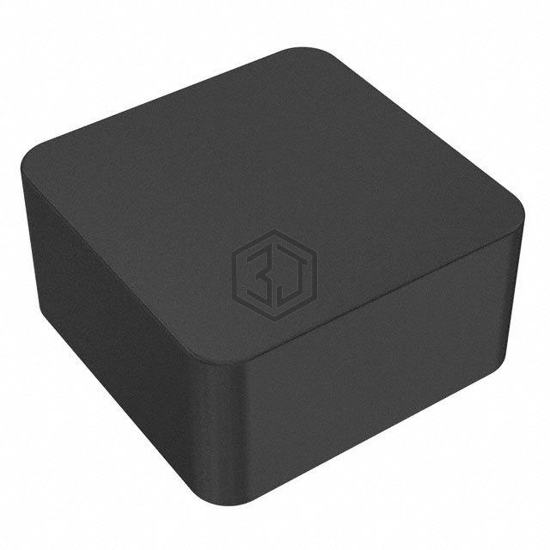

FIXED IND 6.8UH 2.7A 62 MOHM SMD
CDMT40D30HF-6R8NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 6.8UH 2.7A 62 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 3,769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 3.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 62mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.163" L x 0.163" W (4.15mm x 4.15mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
Submit your RFQ for CDMT40D30HF-6R8NC and get a quote within 24 hours.
