Sumida America Components Inc.
FIXED IND 3.3UH 4.3A 23 MOHM SMD

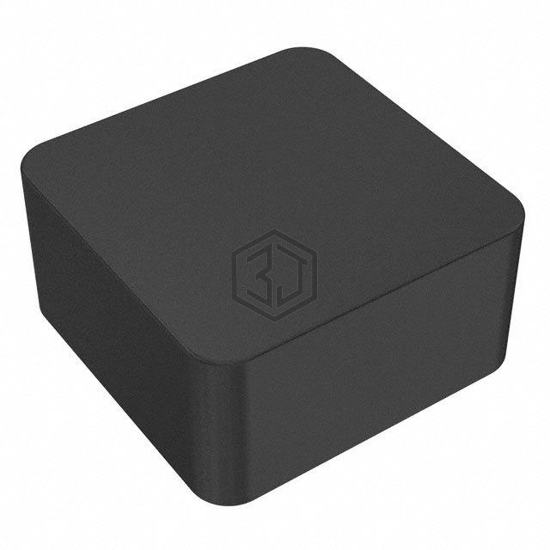

CDMT40D30HF-3R3NC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 3.3UH 4.3A 23 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.3 A.
In Stock: 4,491
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.3 A |
| Current - Saturation (Isat) | 5.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 23mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.163" L x 0.163" W (4.15mm x 4.15mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for CDMT40D30HF-3R3NC and get a quote within 24 hours.
