Sumida America Components Inc.

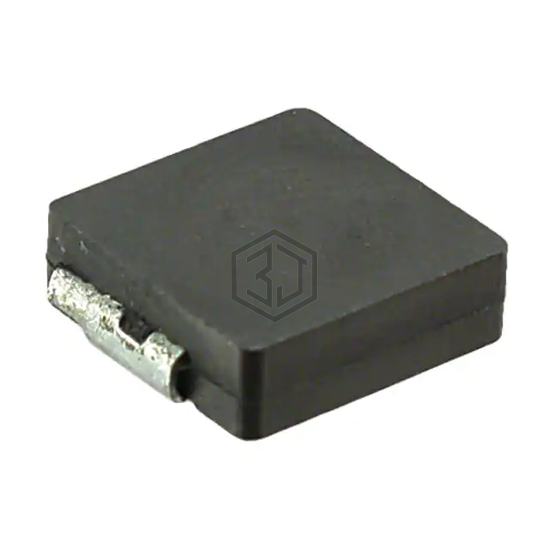

FIXED IND 680NH 15.4A 4.6MOHM SM
CDMC8D28NP-R68MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 680NH 15.4A 4.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 15.4 A.
In Stock: 905
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15.4 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.374" L x 0.335" W (9.50mm x 8.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDMC8D28NP-R68MC and get a quote within 24 hours.
