Sumida America Components Inc.

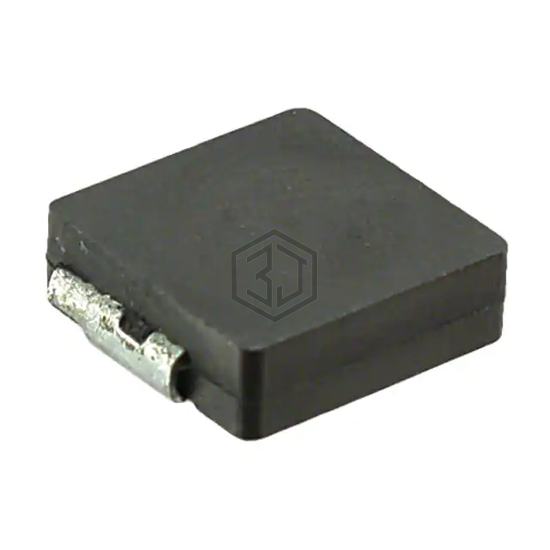

FIXED IND 1.2UH 12.9A 7 MOHM SMD
CDMC8D28NP-1R2MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1.2UH 12.9A 7 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 12.9 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.9 A |
| Current - Saturation (Isat) | 12.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.374" L x 0.335" W (9.50mm x 8.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDMC8D28NP-1R2MC and get a quote within 24 hours.
