Sumida America Components Inc.

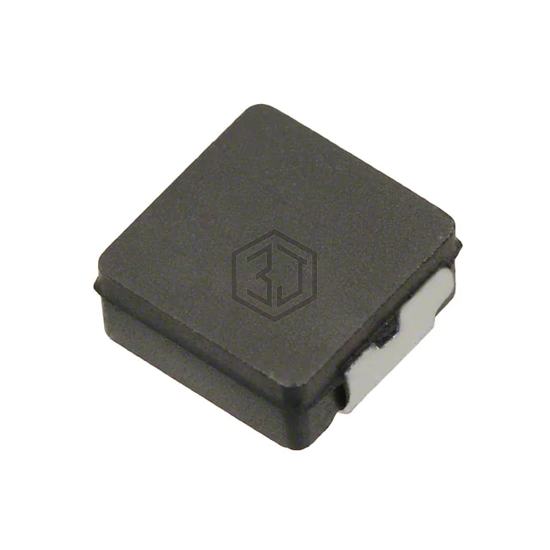

FIXED IND 4.7UH 3.7A 46.4MOHM SM
CDMC6D28NP-4R7MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 4.7UH 3.7A 46.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.7 A.
In Stock: 96,706
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | 4.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 46.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.285" L x 0.256" W (7.25mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDMC6D28NP-4R7MC and get a quote within 24 hours.
