Sumida America Components Inc.
FIXED IND 1UH 9.5A 8.8 MOHM SMD

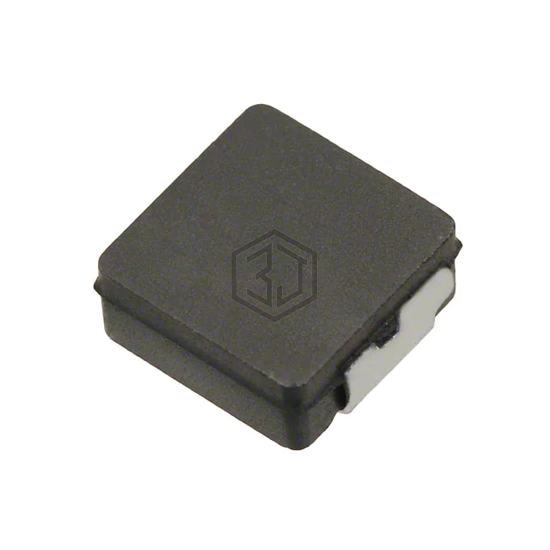

CDMC6D28NP-1R0MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1UH 9.5A 8.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.5 A.
In Stock: 37,794
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 8.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.285" L x 0.256" W (7.25mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for CDMC6D28NP-1R0MC and get a quote within 24 hours.
