Sumida America Components Inc.

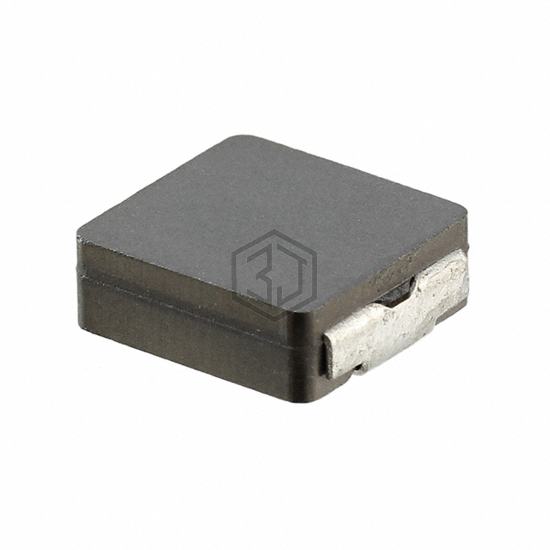

FIXED IND 360NH 25A 1.1 MOHM SMD
CDMC104NP-R36M is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 360NH 25A 1.1 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 28A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for CDMC104NP-R36M and get a quote within 24 hours.
