Sumida America Components Inc.
FIXED IND 470UH 450MA 1.42OHM SM

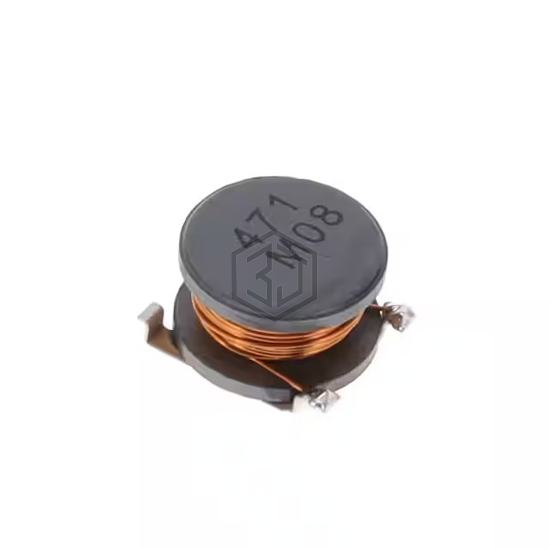

CDH80D48NP-471KC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 470UH 450MA 1.42OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 450 mA.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | 470mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.42Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.331" L x 0.315" W (8.40mm x 8.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for CDH80D48NP-471KC and get a quote within 24 hours.
