Sumida America Components Inc.

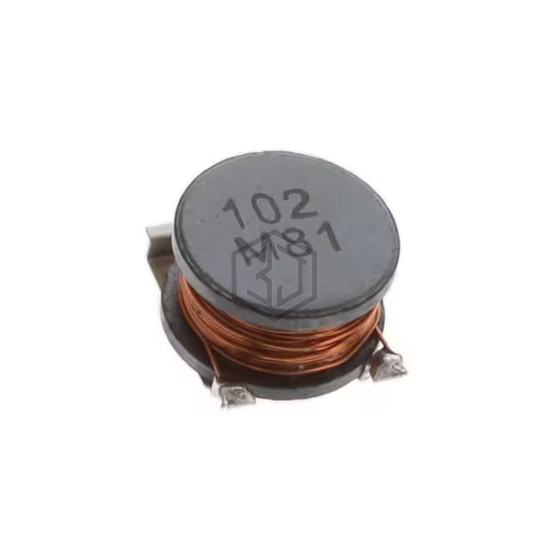

FIXED IND 1MH 310MA 2.94 OHM SMD
CDH80D48NP-102KC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1MH 310MA 2.94 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 310 mA.
In Stock: 420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 310 mA |
| Current - Saturation (Isat) | 320mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.94Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.331" L x 0.315" W (8.40mm x 8.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for CDH80D48NP-102KC and get a quote within 24 hours.
