Sumida America Components Inc.

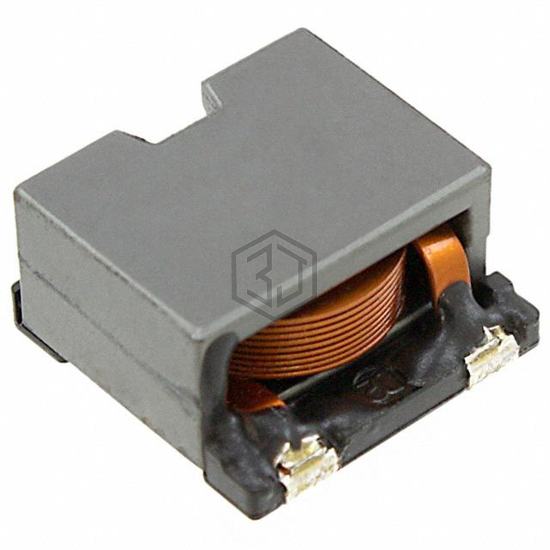

FIXED IND 10UH 12.5A 7.9MOHM SMD
CDEP15D90T150NP-100MC-125 is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 10UH 12.5A 7.9MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 12.5 A.
In Stock: 196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.5 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.9mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.610" L x 0.610" W (15.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for CDEP15D90T150NP-100MC-125 and get a quote within 24 hours.
