Sumida America Components Inc.

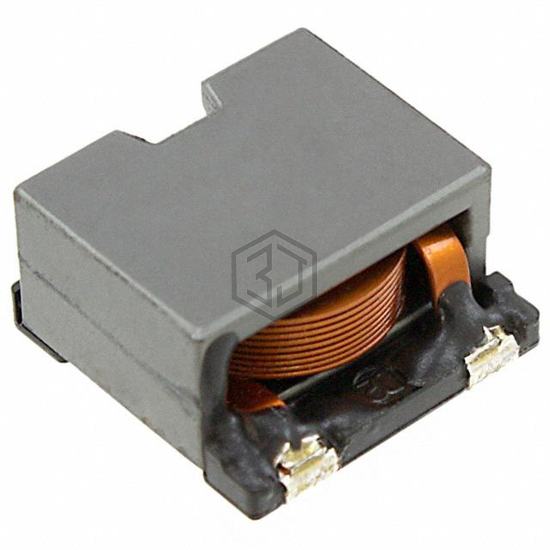

FIXED IND 4.7UH 11A 7.8 MOHM SMD
CDEP147NP-4R7MC-73 is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 4.7UH 11A 7.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 11 A.
In Stock: 9,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 17.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.571" L x 0.571" W (14.50mm x 14.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for CDEP147NP-4R7MC-73 and get a quote within 24 hours.
