Sumida America Components Inc.

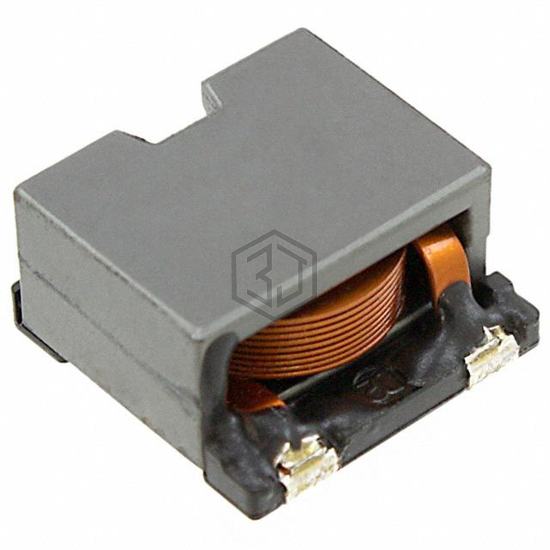

FIXED IND 2.4UH 17.5A 3.23 MOHM
CDEP147NP-2R4MC-95 is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 2.4UH 17.5A 3.23 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 17.5 A.
In Stock: 1,290
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.4 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.5 A |
| Current - Saturation (Isat) | 22.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.571" L x 0.571" W (14.50mm x 14.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for CDEP147NP-2R4MC-95 and get a quote within 24 hours.
