Sumida America Components Inc.

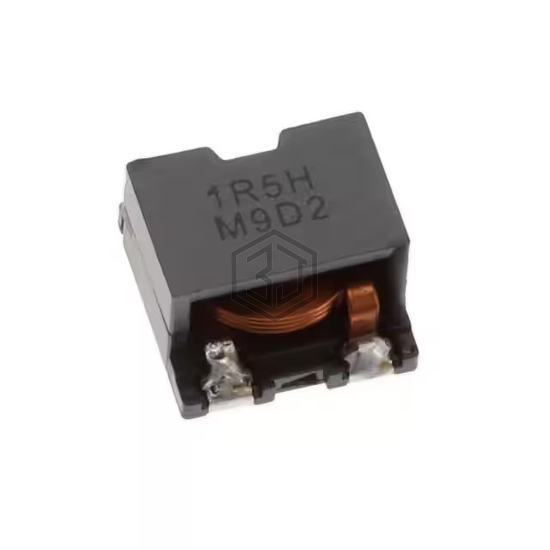

FIXED IND 1.5UH 17.8A 2.6MOHM SM
CDEP13D76T150NP-1R5MC-90 is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 1.5UH 17.8A 2.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 17.8 A.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 17.8 A |
| Current - Saturation (Isat) | 28.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.6mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for CDEP13D76T150NP-1R5MC-90 and get a quote within 24 hours.
