Sumida America Components Inc.
FIXED IND 8UH 6.5A 18.4 MOHM SMD

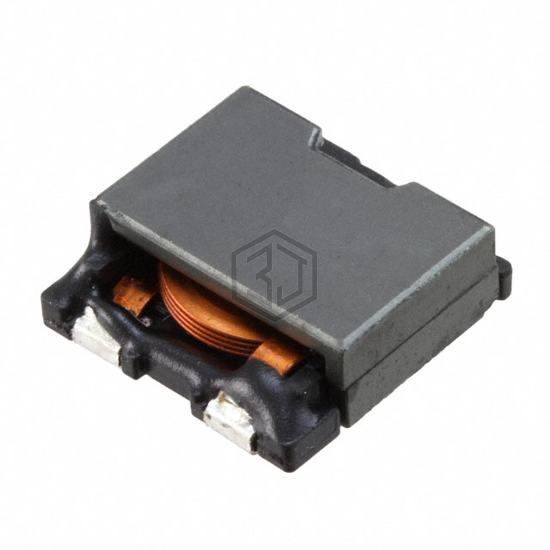

CDEP134NP-8R0MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 8UH 6.5A 18.4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.5 A.
In Stock: 929
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 7.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 18.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Height - Seated (Max) | 0.193" (4.90mm) |
Submit your RFQ for CDEP134NP-8R0MC and get a quote within 24 hours.
