Sumida America Components Inc.

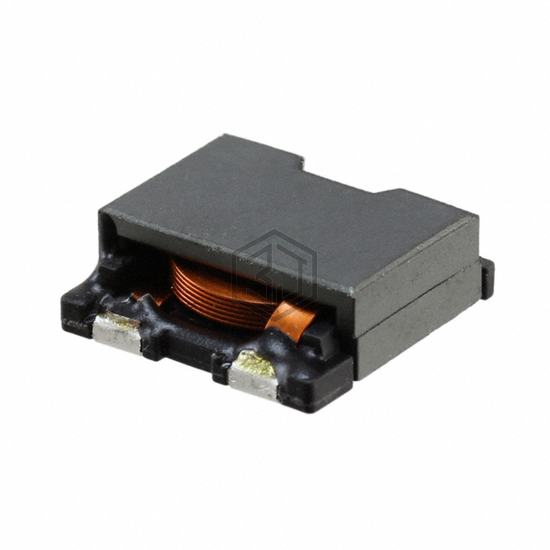

FIXED IND 660NH 17A 2.5 MOHM SMD
CDEP134NP-0R6NC-H is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 660NH 17A 2.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 17 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 660 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 17 A |
| Current - Saturation (Isat) | 29A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for CDEP134NP-0R6NC-H and get a quote within 24 hours.
