Sumida America Components Inc.
FIXED IND 10UH 1.04A 133MOHM SMD

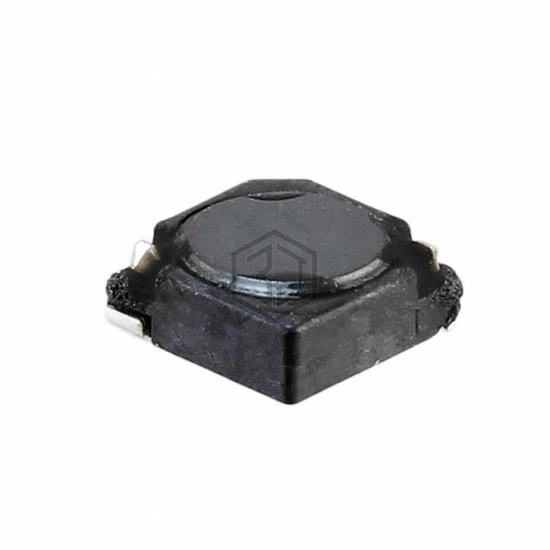

CDC5D23BNP-100LC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 10UH 1.04A 133MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 2323 (5858 Metric), current rating (amps) 1.04 A.
In Stock: 965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.04 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 133mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2323 (5858 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for CDC5D23BNP-100LC and get a quote within 24 hours.
