Sumida America Components Inc.
FIXED IND 330NH 180MA 1 OHM SMD

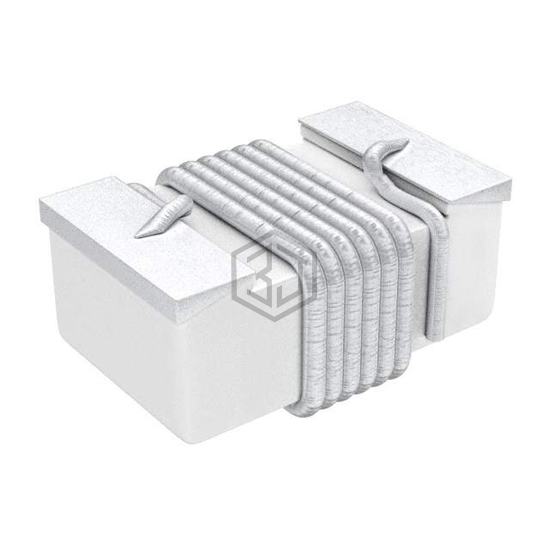

55083313400 is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 330NH 180MA 1 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 180 mA.
In Stock: 452
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 330 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 180 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 35 @ 100MHz |
| Frequency - Self Resonant | 800MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Height - Seated (Max) | 0.056" (1.42mm) |
Submit your RFQ for 55083313400 and get a quote within 24 hours.
