Sumida America Components Inc.
FIXED IND 150NH 45A 730MOHM SMD

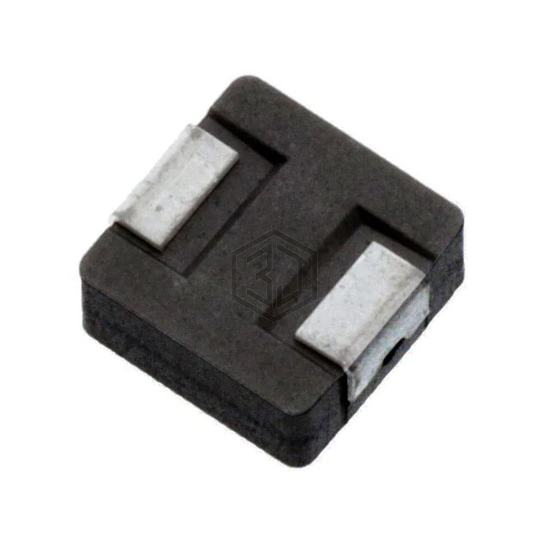

0640CDMCCDS-R15MC is a Fixed Inductors manufactured by Sumida America Components Inc.. FIXED IND 150NH 45A 730MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 45 A.
In Stock: 22,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 45 A |
| Current - Saturation (Isat) | 42.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 730mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for 0640CDMCCDS-R15MC and get a quote within 24 hours.
