CONN HEADER R/A 4POS 2MM

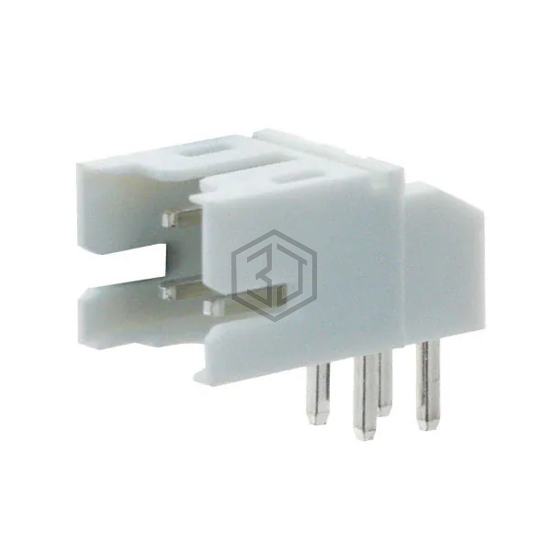

SWR204-NRTN-D02-RA-GA is a Rectangular Connectors - Headers, Male Pins manufactured by Sullins Connector Solutions. CONN HEADER R/A 4POS 2MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 50V, contact material Brass.
In Stock: 1,964
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | 50V |
Submit your RFQ for SWR204-NRTN-D02-RA-GA and get a quote within 24 hours.
